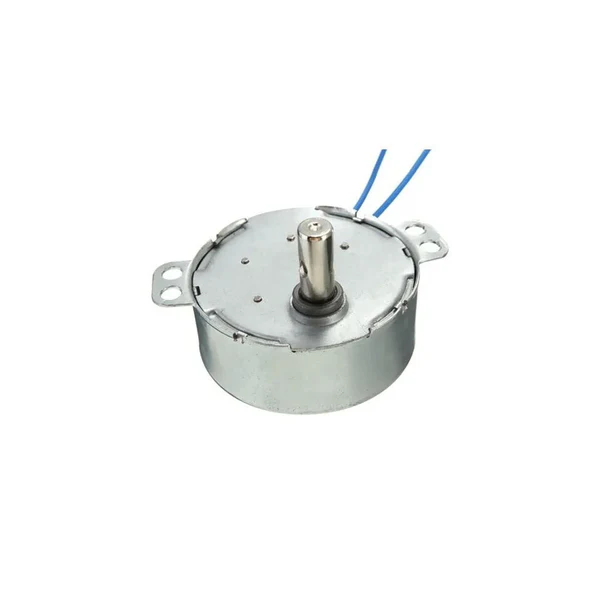

230V 4 RPM Synchronous Swing Motor for Air Conditioners

Description

The 230V 4 RPM Synchronous Swing Motor for Air Conditioners is a precision-engineered electrical component designed to operate at a constant speed synchronized with main power supply frequencies. Operating at 230V / 50Hz with a rated speed of 4 RPM, this motor is widely used in air conditioning systems to provide continuous, smooth directional oscillation for air blades and dampers. Built with a sturdy metallic casing, internal copper windings, an integrated gear drive shaft, and pre-wired flying leads, it delivers reliable, low-maintenance performance over an extended service life.

Technical Specifications

Key Features

• Exact 4 RPM Speed: Operates at a constant 4 R.P.M. synchronized with 50Hz power for steady, flicker-free airflow sweeping.

• 230V Line Voltage Drive: Connects directly to standard 230V AC power inputs without requiring low-voltage transformers.

• Precision Geared Output: Features a durable metal pinion gear shaft designed to engage swing linkage assemblies seamlessly.

• Pre-Wired Lead Connections: Comes equipped with insulated flying lead wires for straightforward technician splicing and terminal connections.

• Robust Metal Casing: High-grade metal housing protects internal gear trains and copper windings against heat and mechanical wear.

• Quiet Operation: Engineered for low-noise rotational performance to eliminate chatter, clicking, or vibration during continuous use.

System Compatibility

• Compatible Systems: Window air conditioners, split AC indoor units, and HVAC equipment utilizing 230V 4 RPM synchronous motors.

• Replacement Application: Ideal drop-in replacement for worn, shorted, binding, or noisy 230V swing motors with pin-gear shafts.

Applications & Functions

• AC Air Directional Control: Drives automatic left-to-right or vertical swinging of air vents and direction flaps.

• Timing & Control Mechanisms: Supports fixed-speed rotational tasks in electrical and electronic control units.

• HVAC Maintenance & Repair: Essential spare part for field technicians servicing commercial and residential cooling systems.

Installation & Technician Notes

• Safety First: Disconnect main power to the AC unit before inspecting or replacing the motor.

• Voltage Verification: Ensure the circuit supplies 230V AC (50Hz) to avoid motor damage or improper rotational speed.

• Gear Alignment: Verify that the output shaft pinion meshes cleanly with the louver drive gear or connecting arm before securing mounting screws.

Package Includes

• 1 x 230V 4 RPM Synchronous Swing Motor for Air Conditioners with Flying Leads

Important Buyer Verification Notes

Notice for Buyers & Technicians: Before placing an order, check your existing motor’s casing to verify the voltage (230V 50Hz), speed (4 R.P.M.), shaft gear profile, and mounting bracket layout match this unit.

Why Buy From Al Ramiz

• Genuine Quality Parts: Dependable, factory-tested HVAC spare parts and control components.

• UAE Stock & Local Inventory: Fast processing and local dispatch across the UAE.

• Technical Product Support: Assistance with component selection and product verification.

• Competitive Pricing: Cost-effective solutions for contractors and service technicians.

Frequently Asked Questions (FAQs)

What is the speed of this synchronous motor?

This motor operates at a fixed speed of 4 RPM (rotations per minute) synchronized at 50Hz.

What voltage does this motor require?

It operates on standard 230V AC power mains.

Does this motor come with connection wires?

Yes, it includes pre-attached insulated flying lead wires for quick installation into terminal blocks or wire nuts.

Can this motor be used for both window and split AC units?

Yes, as long as the original motor specifications match 230V AC, 4 RPM, and share the same gear shaft and mounting profile.
