Description

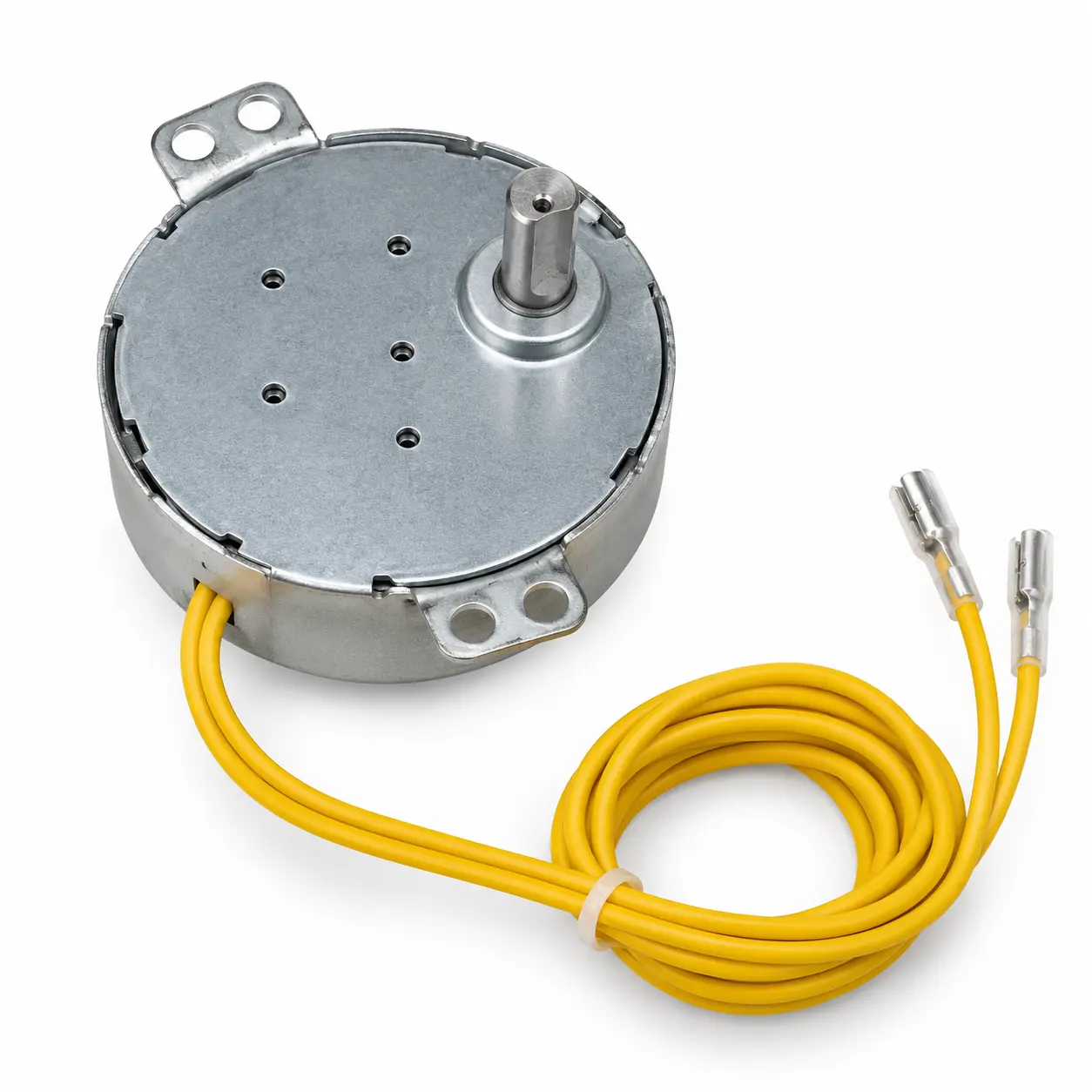

The AC Synchronous Swing Motor – 220-240V, 5-6 RPM is a precision-built electrical drive component designed to operate at a fixed rotational speed synchronized with AC line power frequency. Consuming minimal energy (3–4W), this motor utilizes an internal reduction gear train sealed inside a metallic body to deliver smooth, high-torque rotation without overheating. Fitted with a D-cut output shaft and two flexible insulated lead wires, it serves as an efficient replacement motor for directional air vents, oscillating fans, and slow-rotation electrical mechanisms.
Technical Specifications
| Specification | Details |
| Product Name | AC Synchronous Swing Motor – 220-240V, 5-6 RPM |
| Motor Type | AC Synchronous Geared Motor |
| Operating Voltage | 220–240V AC |
| Frequency | 50/60 Hz |
| Rotation Speed | 5–6 RPM |
| Power Consumption | 3–4 W |
| Shaft Type | D-Cut Shaft |
| Housing Material | Sealed Metal Gearbox Body |
| Wiring Connection | 2-Lead Insulated Wire with Spade Crimp Terminals |
| Product Condition | New / Universal Component |
Key Features
-
Constant 5–6 RPM Speed: Delivers continuous, flicker-free low-speed rotation synchronized with line voltage frequency.
-
Low Power Consumption: Operates efficiently at just 3–4W, allowing continuous operation without excessive heat build-up.
-
D-Cut Drive Shaft: Features a flat-milled D-shape shaft profile for positive engagement with louver drive arms and pulleys.
-
Sealed Metal Housing: Protective casing guards internal gear trains against dust, ambient humidity, and mechanical fatigue.
-
Direct Line Voltage Drive: Connects directly to 220–240V AC power inputs using pre-fitted spade crimp lead terminals.
Supported Applications
-
Air Louver Oscillation: Drives automatic left-to-right or up-and-down swing louvers in window units, split systems, and evaporative air coolers.
-
Utility Equipment Drive: Ideal replacement motor for microwave turntables and incubator egg-turning assemblies.
-
DIY Automation Projects: Provides reliable low-speed, constant-torque rotation for mechanical displays and custom electronic automation.
Benefits
-
Eliminates clicking, gear binding, or non-responsive louver movement in cooling systems.
-
Heavy-duty metallic housing extends service life under continuous thermal cycling.
-
Standardized mounting tabs allow straightforward drop-in installation.
Package Includes
-
1 x AC Synchronous Swing Motor (220–240V, 5–6 RPM) with Lead Wires
Important Buyer Verification Notes
Notice for Buyers & Technicians: Before ordering, inspect your existing motor body to confirm operating voltage (220–240V AC), rotation speed (5–6 RPM), mounting tab spacing, and shaft shape (D-cut profile). Disconnect main line power before servicing or replacing components.
Why Buy From Al Ramiz
-
Genuine Quality Parts: Dependable, field-tested HVAC replacement components and motors.
-
UAE Stock & Local Inventory: Fast order processing and local dispatch across the UAE.
-
Technical Product Support: Assistance with component matching and specification confirmation.
Frequently Asked Questions (FAQs)
What power supply does this motor require?
This motor runs directly on standard 220–240V AC household mains power at 50/60 Hz.
What is the advantage of a D-cut shaft profile?
The flat surface on the D-cut shaft prevents the connected drive lever or gear arm from slipping during rotation.
Can this motor run continuously?
Yes, drawing only 3–4W of power, it is rated for continuous low-speed operation without overheating.
