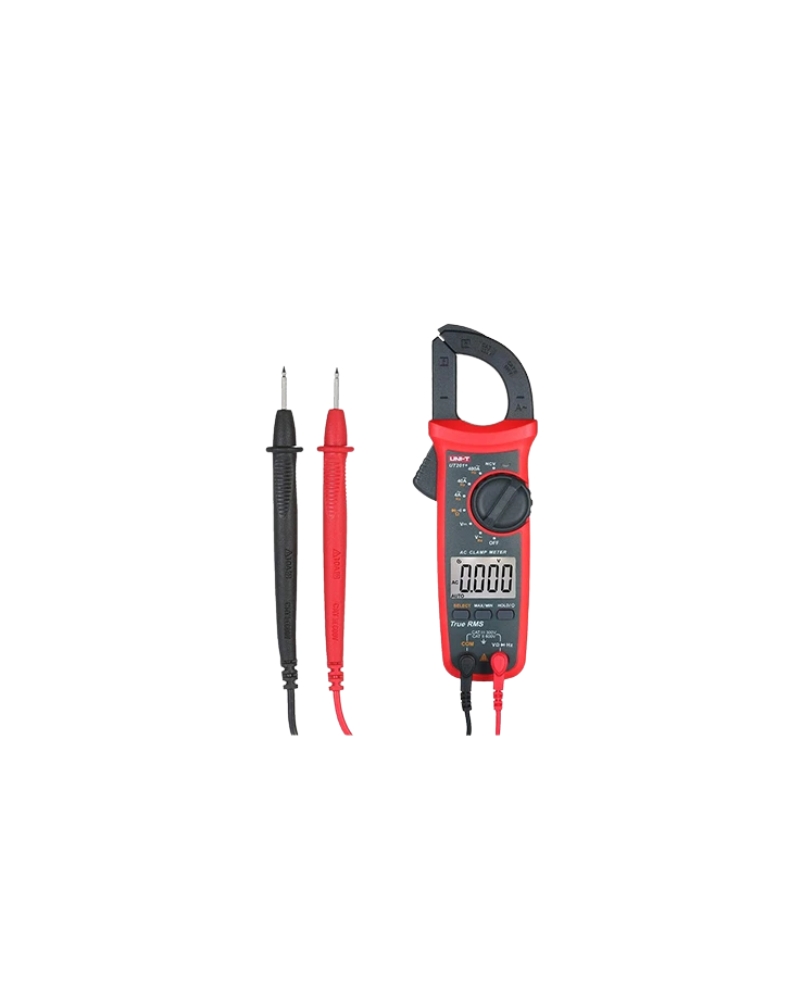

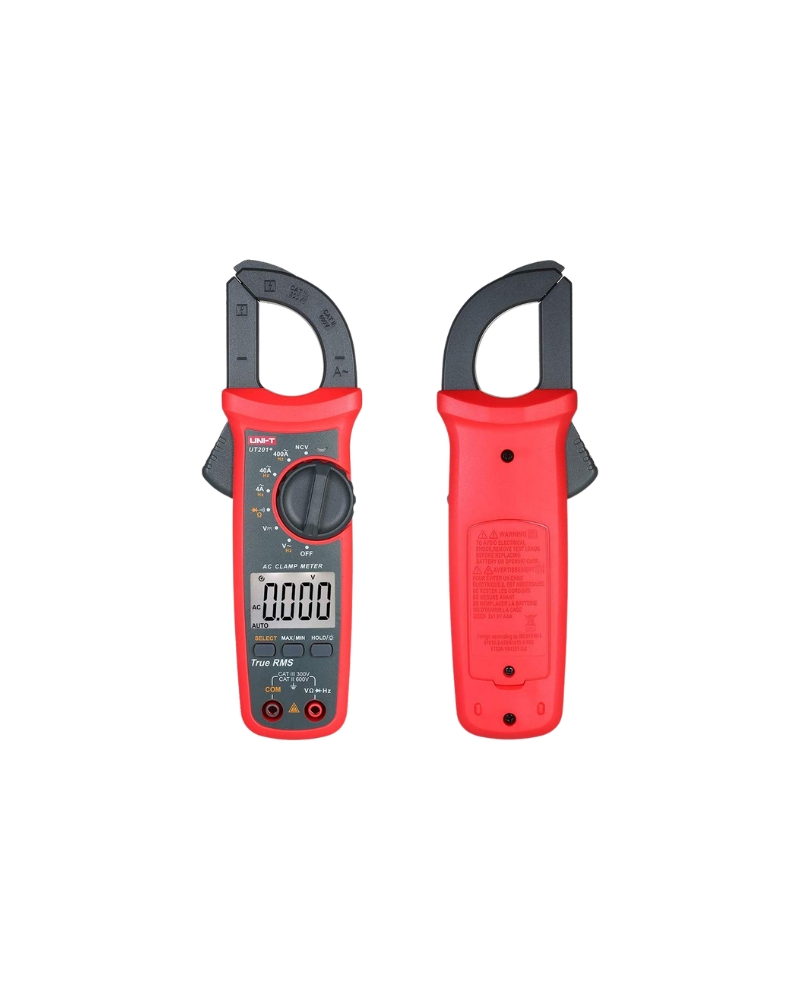

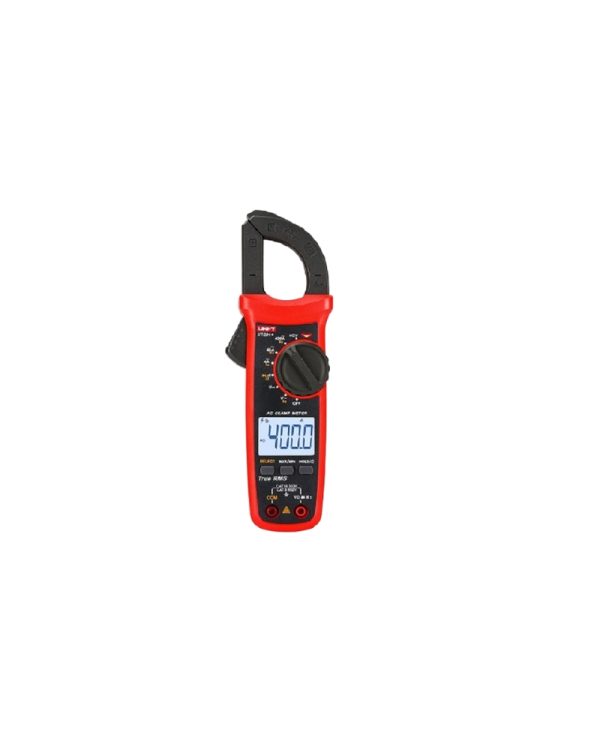

The UNI-T UT201 Digital Clamp Meter is a reliable and versatile tool used for measuring AC current, voltage, resistance, and more. Ideal for electricians, HVAC technicians, and general electrical maintenance, this clamp meter provides accurate readings and is easy to use in a variety of settings.

Features:

• True RMS Measurement for accurate readings on both sinusoidal and non-sinusoidal waveforms.
• AC Current Measurement up to 400A with a frequency range of 50Hz to 100Hz.
• AC/DC Voltage Measurement up to 600V.
• Resistance Measurement up to 40MΩ.
• Non-Contact Voltage (NCV) Detection to alert users to the presence of voltage.
• Additional functions include continuity testing, diode testing, data hold, and auto power-off.

Specifications:

• Display: 4000-count LCD with backlight.
• Jaw Opening: 28mm, suitable for conductors up to 28mm in diameter.
• Safety Rating: EN61010-2010 CAT II 600V / CAT III 300V.
• Power Supply: Two 1.5V R03 batteries.
• Dimensions: 215mm x 63mm x 36mm.
• Weight: Approximately 248g.

Applications:

• Electrical troubleshooting in residential, commercial, and industrial environments.
• HVAC system maintenance and repairs.
• DIY electrical projects.

Questions:

1. How does the True RMS feature improve the accuracy of the UNI-T UT201?
2. What is the significance of the NCV (Non-Contact Voltage) feature in electrical testing?
