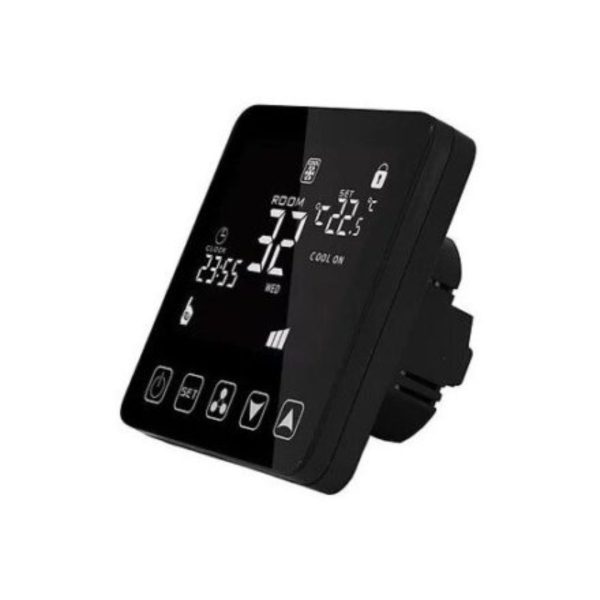

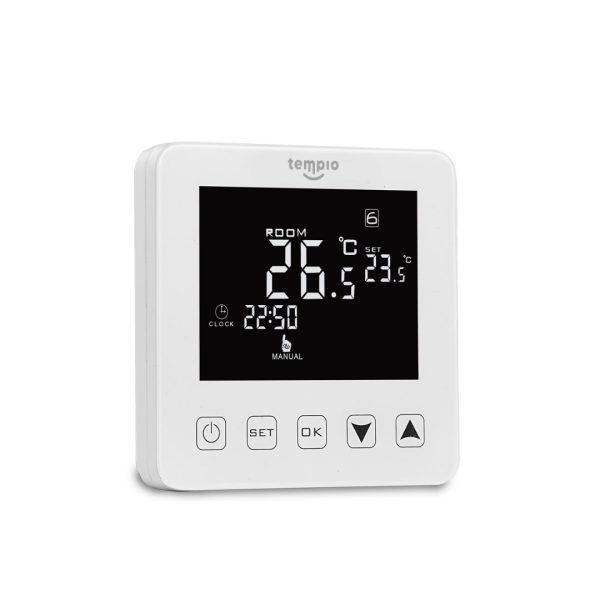

HY08AC Wi-Fi Programmable Thermostat – Comprehensive Overview
The HY08AC Wi-Fi Programmable Thermostat is a cutting-edge smart thermostat designed to provide precise temperature control for modern HVAC systems, especially fan coil units. This advanced thermostat combines convenience, energy efficiency, and sophisticated connectivity, allowing users to manage their indoor climate remotely through Wi-Fi using smartphones, tablets, or other smart devices.
Designed for both residential and commercial applications, the HY08AC thermostat supports multiple programming schedules, enabling users to set customized temperature profiles for different days and times. This feature helps optimize energy consumption by ensuring heating or cooling operates only when needed, thus reducing utility costs while maintaining comfort.
Applications
-
Residential HVAC Systems: Ideal for homes seeking smart, programmable control over heating and cooling for increased comfort and savings.
-
Commercial Buildings: Offices, hotels, and retail environments benefit from flexible scheduling and remote management.
-
Fan Coil Units: Designed specifically for fan coil applications in 2-pipe or 4-pipe systems.
-
Central Air Conditioning Systems: Compatible with central HVAC setups requiring precise zone control.
-
Energy Management: Supports energy-efficient climate management through programmable schedules and remote access.
Key Features
-
Wi-Fi Enabled: Control your thermostat remotely via smartphone or tablet with dedicated apps.
-
Multiple Programming Modes: Supports 5+2, 6+1, and 7-day scheduling for tailored temperature settings.
-
Wide Temperature Range: Adjustable from 5°C to 35°C (41°F to 95°F) to suit diverse climate needs.
-
Fan Speed Control: Choose from low, medium, high, or automatic fan operation.
-
Touchscreen LCD: Large, clear, and easy-to-use interface for quick adjustments.
-
Heating and Cooling Support: Seamless switching between modes for year-round comfort.
-
Keypad Lock: Prevents accidental or unauthorized setting changes.
-
Energy Saving: Programmable schedules and precise control help reduce energy consumption.
-
Robust Build: Made with durable ABS plastic and IP30 protection rating for reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HY08AC |
| Power Supply | AC 90-240V, 50/60 Hz |
| Rated Current | 3 Amps |
| Temperature Setpoint | 5°C to 35°C (41°F to 95°F) |
| Temperature Accuracy | ±0.5°C |
| Operating Ambient Temp | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Display | LCD Touchscreen |
| Fan Speeds | Low, Medium, High, Auto |
| Control Mode | On/Off |
| Sensor Type | NTC Sensor |
| Connectivity | Wi-Fi (IEEE 802.11 b/g/n) |
| Housing Material | ABS Plastic |
| Protection Rating | IP30 |
| Dimensions | 86 mm x 86 mm x 38 mm |
| Certifications | CE, RoHS |
Frequently Asked Questions
-
Can I control the HY08AC thermostat remotely?
Yes, the thermostat connects to Wi-Fi, allowing you to adjust settings from anywhere via a smartphone or tablet app. -
Is the thermostat compatible with both heating and cooling systems?
Absolutely, it supports both heating and cooling modes for flexible year-round use.
