Description
Overview

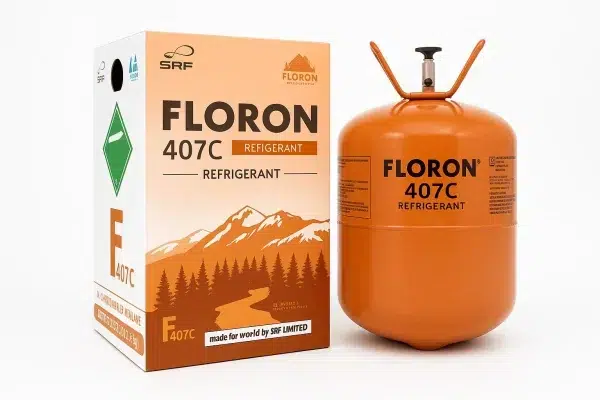

Floron R-407C Refrigerant Gas is a high-efficiency, environmentally safer alternative to R-22, formulated with a blend of R-32, R-125, and R-134a. Designed for air-conditioning and refrigeration applications, it offers Zero Ozone Depletion Potential, consistent cooling performance, and smooth operation across a wide temperature range. Its pressure–temperature behavior closely matches R-22, making it ideal for retrofit projects.
Key Features
- Eco-Friendly: Zero ODP, ASHRAE A1 safety rating.
- R22 Retrofit Ready: Similar operating pressures enable easier conversions.
- High Efficiency: Delivers strong cooling capacity and consistent performance.
- Temperature Glide: ~7–8°C glide suitable for properly designed systems.
- POE Oil Compatible: Requires Polyolester oil for lubrication.
- High Purity: Moisture-free packaging ensures system reliability.
Applications
- Residential split air-conditioners
- Commercial packaged HVAC units
- Heat pumps (domestic & commercial)
- Medium-temperature refrigeration systems
- R-22 system retrofits
Technical Specifications
| Brand | Floron |
|---|---|
| Refrigerant Type | HFC Blend (R-32 / R-125 / R-134a) |
| Blend Ratio | 23% R-32 / 25% R-125 / 52% R-134a |
| ODP | 0 (Zero) |
| GWP | ~1,770 |
| Boiling Point | −43.8 °C |
| Temperature Glide | ~7–8 °C |
| Oil Compatibility | POE (Polyolester) oil |
| Available Packaging | 7 kg, 45 kg, 800 kg cylinders |
| Safety Classification | A1 (Non-toxic, Non-flammable) |
Cylinder Dimensions & Handling
- Height (7 kg cylinder): approx. 45–48 cm
- Diameter: approx. 23–25 cm
- High-strength steel cylinder for durability
- Store between 0–45°C in a ventilated area
- Charge as liquid to maintain blend composition
Retrofit Guidelines (R-22 → R-407C)
- Recover all R-22 from the system completely
- Replace mineral oil with POE oil
- Replace filter-drier and check seals
- Evacuate system to deep vacuum
- Charge R-407C as liquid
Safety & Storage
- Non-flammable, low toxicity (A1)
- Use proper PPE (gloves, goggles)
- Keep cylinder upright during charging
- Avoid exposure to direct sunlight or heat
FAQs
1. Does R-407C have temperature glide?
Yes—about 7–8°C, which must be considered during system design and servicing.
2. Is R-407C a drop-in replacement for R-22?
No. A proper retrofit process is required, including oil change and system adjustments.
3. Is R-407C better than R-410A for retrofits?
Yes—its pressure profile is much closer to R-22, making it more retrofit-friendly.
4. What oil is required?
Only POE oil should be used with R-407C.
5. Can I charge it as gas?
No. R-407C is a blend and must always be charged as liquid.
