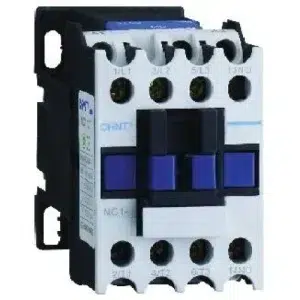

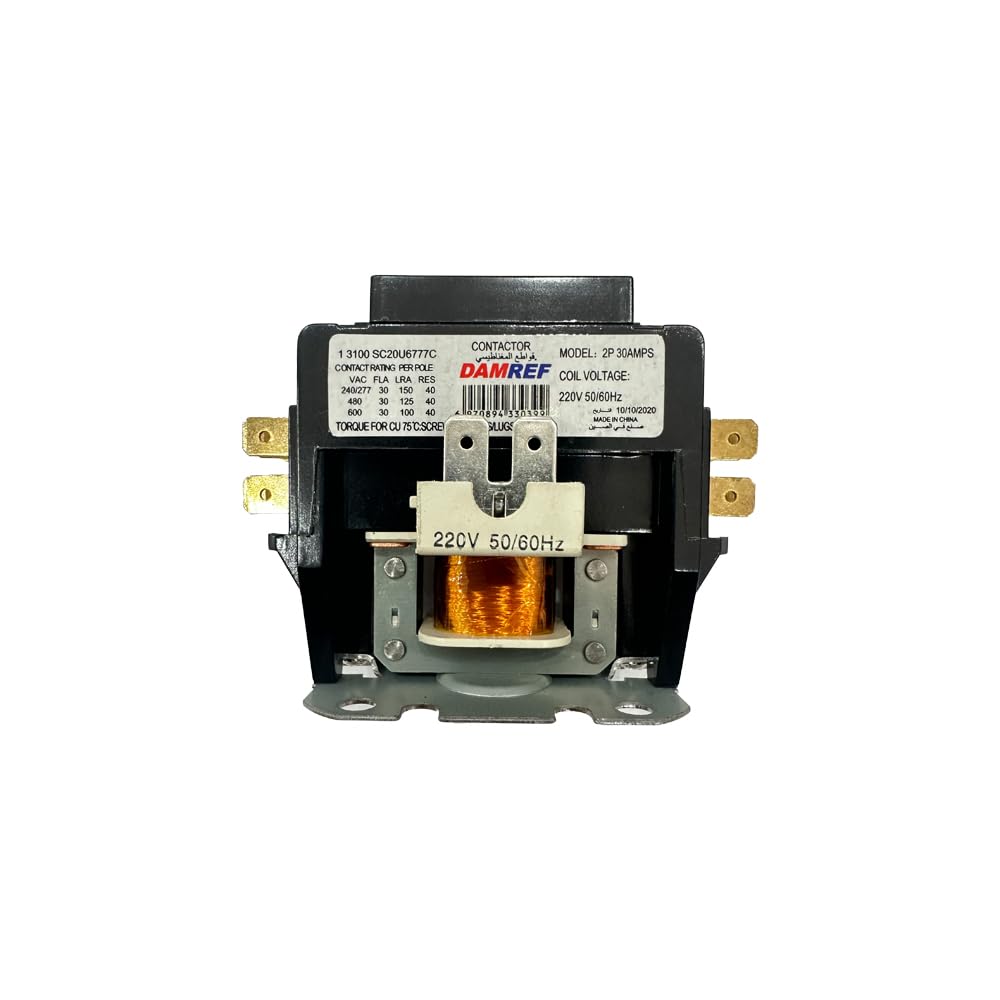

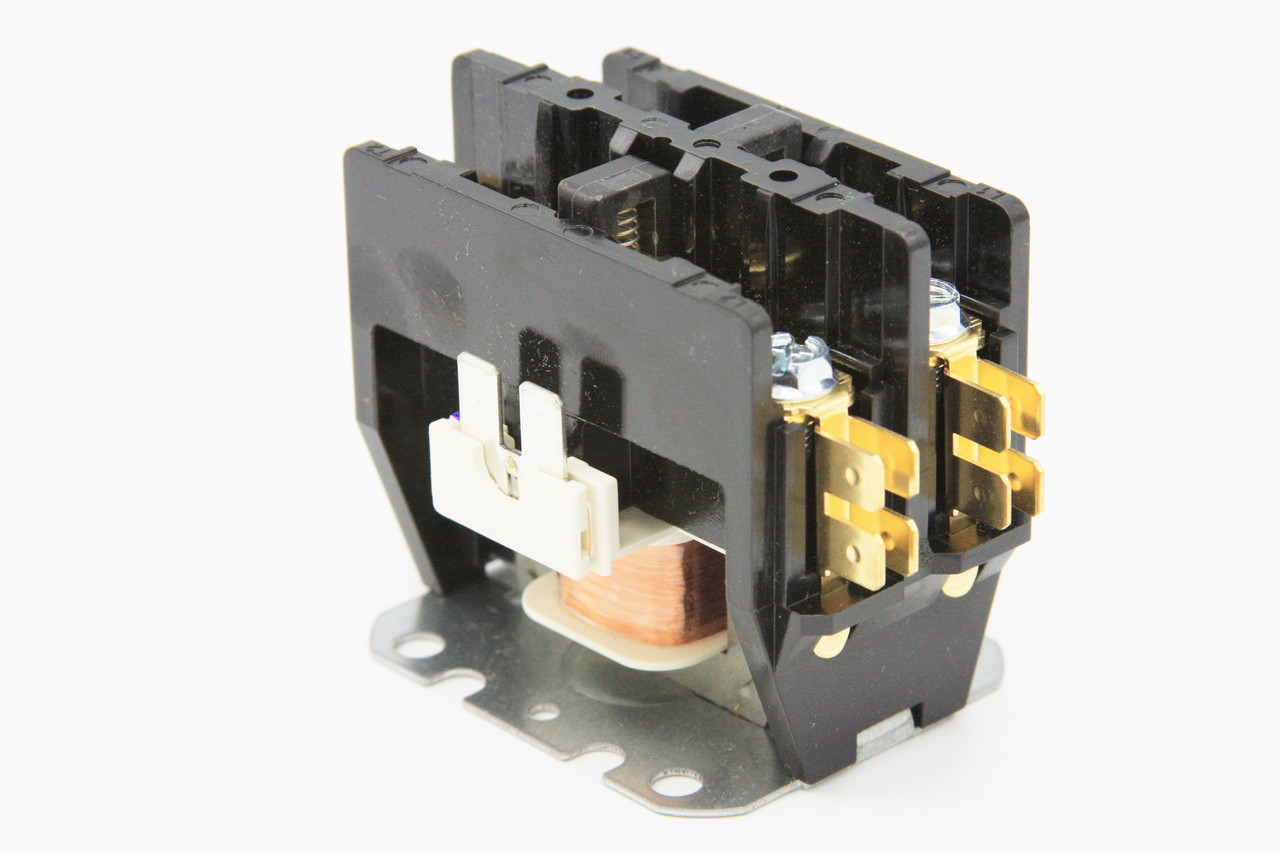

CONTACTER 2 POL 220V

Description

What It Is

• A contactor is a high-current relay designed to switch electrical circuits—especially useful in systems with frequent on/off cycles and higher loads—unlike smaller relays used for low-power applications.

• The “2‑pole” configuration allows the device to control two separate AC lines simultaneously—commonly used in single-phase systems for switching both live and neutral or separate phases.

Core Specifications

While specific specs vary by manufacturer and model, typical parameters include:

• Coil Voltage: Usually 220 V or 220–240 V AC—this voltage activates the contactor’s electromagnet.

• Current Rating:

  • Around 25 A in household applications (AC‑7a usage).

  • Higher industrial ratings such as 32 A AC1 or 20 A AC3 per pole

• Pole Configuration:
  Two independent switching circuits (poles) that can be configured as normally open (NO) or normally closed (NC).

• Mounting Types:

  • DIN-rail (35 mm) for modular installation.

  • Screw terminals or bracket mounting for fixed panel installations

• Standards Compliance:
  Compliance with IS/IEC 60947-4-1 and related standards ensures reliability and safety.

• Build Quality:
  Built for long mechanical (up to millions of cycles) and electrical life, with arc-resistant contact materials.

Uses & Applications

2‑pole, 220 V contactors are used across many settings:

• HVAC Systems: Control compressors, fans, and pumps with reliable switching

• Lighting Control: Ideal for switching large lighting arrays in commercial buildings

• Industrial Machinery: Motors and machinery requiring frequent cycling at 220 V.

• Refrigeration: Managing compressor circuits in commercial cooling setups.

• Pumping Systems: Agricultural or water systems using 220 V motors.

• Backup Generators: To handle switching of power distribution in DG systems.

Summary Table

Final Thoughts

• Short: A 2‑pole 220 V contactor is a compact electromagnetic switch used to control two separate high-current AC circuits from a 220 V control input.

• Long: It offers reliable switching in demanding environments—rated for specific current capacities, compliance with industrial standards, suitable for modular installations, and widely used in HVAC, machinery, lighting, and backup power systems.

  1. What is a 2-pole contactor and how does it work?

  Answer:
  A 2-pole contactor is an electrical switch that can control two separate power lines simultaneously. When the 220V AC coil is energized, it pulls in a magnetic core that closes the contacts, allowing current to flow to connected equipment like motors or compressors. It’s typically used for single-phase 220V systems.

  2. What type of loads can a 2-pole 220V contactor control?

  Answer:
  It can control various types of high-power AC loads, including:

  • HVAC compressors and fan motors

  • Water pumps

  • Lighting circuits

  • Heating elements

  • Refrigeration units

  The specific load capacity depends on the ampere rating of the contactor (e.g., 20A, 25A, 40A).

  3. What is the coil voltage and why does it matter?

  Answer:
  The coil voltage is the voltage required to energize the contactor’s internal electromagnetic coil. For this model, it’s 220–240V AC. You must match the control voltage (e.g., from a thermostat or control panel) to the coil voltage to ensure proper operation.
