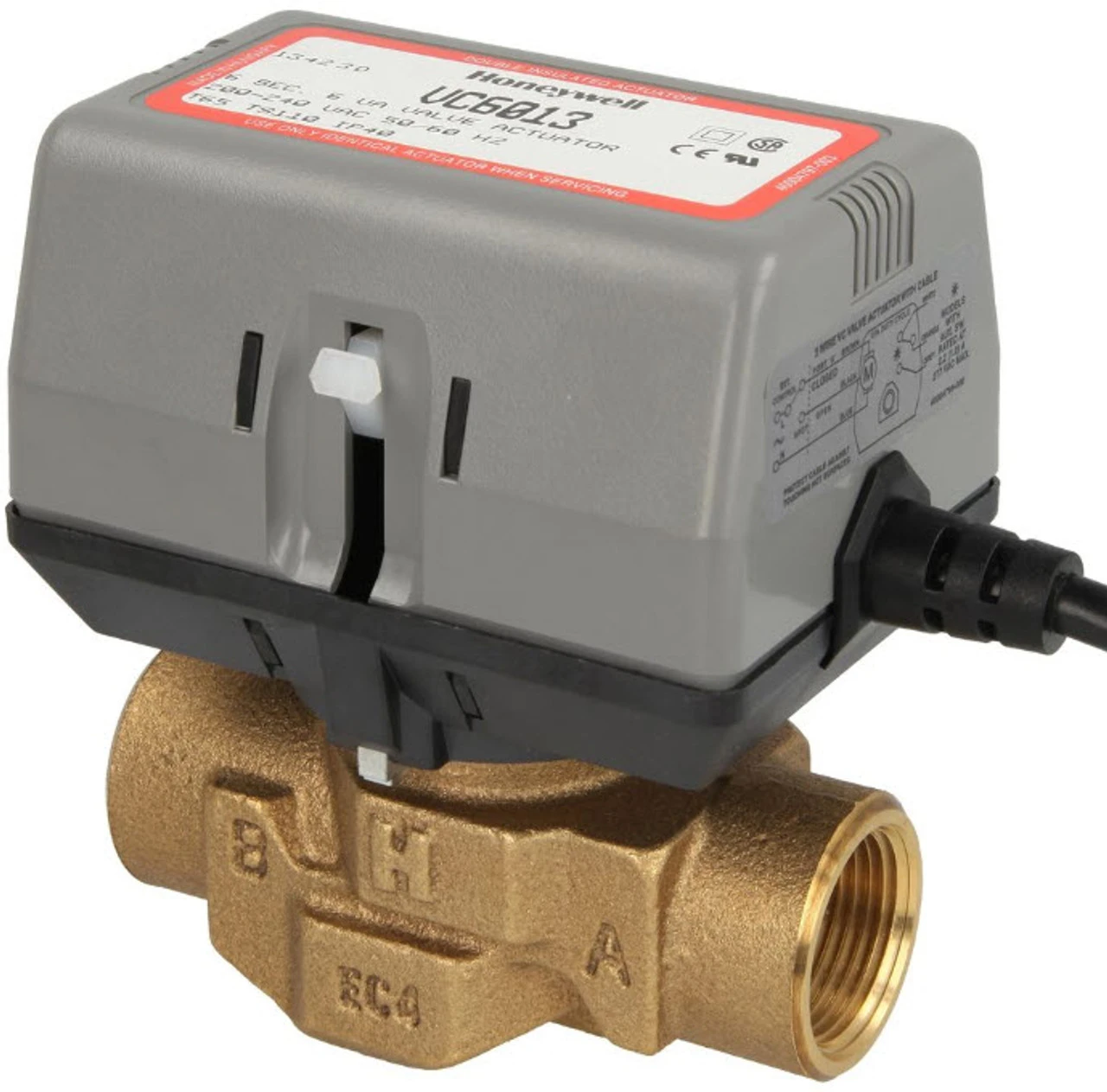

ACTUATOR VC6013AJ1000T 1″ 2 WAY

Description

ACTUATOR VC6013AJ1000T is a high-performance Honeywell VC Series 2-way electric valve actuator designed for precise control of hot or chilled water flow in HVAC heating and cooling systems. Operating at 220–240 V, it delivers reliable, quiet, and energy-efficient performance for fan coil units, radiators, and other hydronic applications.

Built with a removable actuator head for easy maintenance without draining the system, the VC6013AJ1000T ensures smooth operation using Honeywell’s sinusoidal drive technology, which reduces water hammer and mechanical wear. Internal limit switches provide safety by cutting off power when the travel limit is reached. This actuator is compatible with Honeywell’s VC series valve bodies and is ideal for residential, commercial, and light industrial HVAC installations.

Key Specifications

• Product Type: 2-way electric valve actuator
• Brand / Series: Honeywell VC Series
• Model Number: VC6013AJ1000T
• Valve Size: 1 inch (DN25)
• Valve Type: 2-way, on-off control
• Voltage: 220–240 VAC, 50/60 Hz
• Power Consumption: ~6 VA (only during travel)
• Control Signal: On/Off
• Running Time: Approx. 6 seconds
• Drive Type: Sinusoidal motion for quiet, smooth operation
• Body Material: Brass valve body with high-strength actuator housing
• Connections: BSP threaded ends
• Max Operating Pressure: 1.6 MPa
• Max Fluid Temperature: 94 °C
• Ambient Temperature Range: 0–60 °C
• Cable Length: Factory-fitted 1 m cable
• Maintenance: Removable actuator head (no draining required)

Operating Benefits

• Precise Water Flow Control – Enhances heating and cooling system efficiency.
• Quiet Operation – Reduces noise in occupied spaces.
• Easy Maintenance – Remove the actuator without draining the system.
• Energy Efficient – Power is consumed only during movement.
• Reliable Honeywell Build – Long service life in demanding conditions.

Uses

• Fan coil units (FCUs)
• Radiator and underfloor heating systems
• Chilled water systems
• Commercial and residential HVAC hydronic circuits
• Zone control in building automation

FAQs – Honeywell VC6013AJ1000T 1″ 2-Way Actuator

Q1: What does the VC6013AJ1000T do?
A: It controls hot or chilled water flow in HVAC systems for efficient temperature regulation.

Q2: Can I replace it without draining the system?
A: Yes, the actuator head is removable for easy maintenance.

Q3: Is it compatible with all Honeywell VC series valves?
A: Yes, with matching 1″ (DN25) VC series valve bodies.
