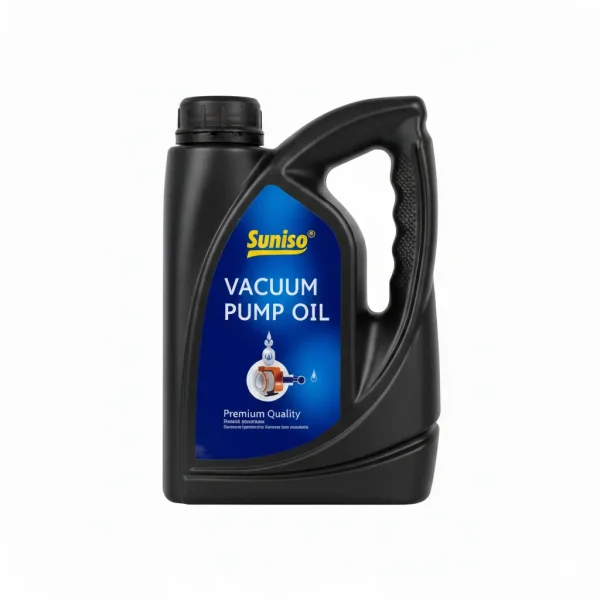

Vacuum Pump Oil – High-Performance Lubricant for Refrigeration and Industrial Applications

Vacuum Pump Oil – High-Performance Lubricant for Refrigeration and Industrial Applications

Original price was: AED 99.00.Current price is: AED 88.00.

High-grade Vacuum Pump Oil formulated to deliver exceptional lubrication and sealing in refrigeration, air-conditioning, and industrial vacuum systems.
Provides low vapor pressure, high thermal stability, and outstanding resistance to oxidation.
Ensures quick evacuation and long pump life by minimizing carbon formation and moisture absorption.
Compatible with most rotary vane, reciprocating, and diffusion vacuum pumps.
Ideal for HVAC service, refrigeration maintenance, and laboratory equipment.

in stock

Category:

Description

This premium-quality vacuum pump oil is designed to achieve deep vacuum levels while protecting internal pump components against wear and corrosion.
Its refined base oil provides excellent demulsibility, ensuring rapid separation from contaminants and moisture.
Maintains stable viscosity across a wide temperature range, enabling consistent performance even under continuous high-temperature operation.

⚙️ Key Features & Benefits:

  • Low Vapor Pressure: Enables deep and consistent vacuum performance.

  • Excellent Thermal & Oxidation Stability: Prevents sludge and carbon deposit formation.

  • High Lubricity: Reduces friction and mechanical wear on pump parts.

  • Moisture & Contaminant Control: Minimizes rust, corrosion, and acid buildup.

  • Non-Foaming Formula: Ensures smooth and efficient pump operation.

  • Extended Service Life: Reduces maintenance frequency and operational downtime.

🏭 Applications:

  • Refrigeration and HVAC vacuum pumps

  • Industrial vacuum systems and coating equipment

  • Laboratory and research vacuum pumps

  • Food packaging and medical suction systems

  • Compatible with rotary vane, piston, and diffusion-type pumps

📋 Technical Specifications (Typical Values):

Property Typical Value Test Method
Appearance Clear, Light Amber Visual
Base Oil Type Refined Mineral / Synthetic Blend
ISO Viscosity Grade 68 ASTM D2422
Viscosity @ 40 °C 68 cSt ASTM D445
Flash Point 210 °C ASTM D92
Pour Point –30 °C ASTM D97
Density @ 15 °C 0.875 kg/L ASTM D4052
Vapor Pressure @ 25 °C < 1 × 10⁻³ Torr
Water Content < 50 ppm ASTM D6304
Foaming Tendency Nil ASTM D892

🧾 Compatibility:

  • Compatible with most rotary vane and reciprocating vacuum pumps.

  • Safe for systems using copper, aluminum, and stainless-steel components.

  • ⚠️ Not recommended for oxygen-rich or corrosive gas applications.

🧰 Packaging Options:

  • Available in 1 LTR & 1 GALLON Packing

  • Factory-sealed for purity and moisture protection.

🛡️ Storage & Handling Guidelines:

  • Store in a cool, dry place away from moisture and direct sunlight.

  • Always reseal containers immediately after opening.

  • Avoid contamination with dust, moisture, or other lubricants.

  • Dispose of used oil according to local environmental regulations.
