NBR rubber pipe insulation for copper coil and pipe

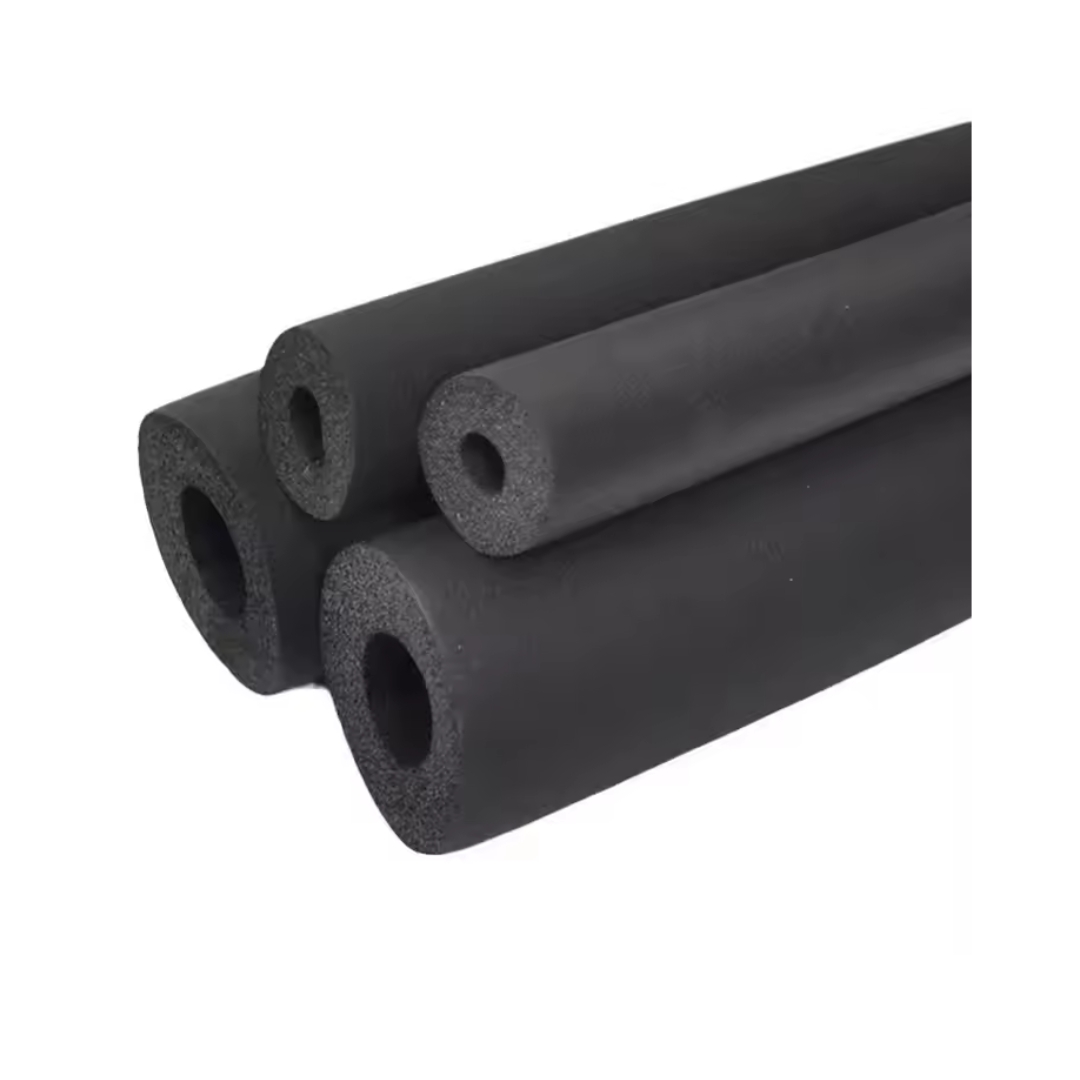

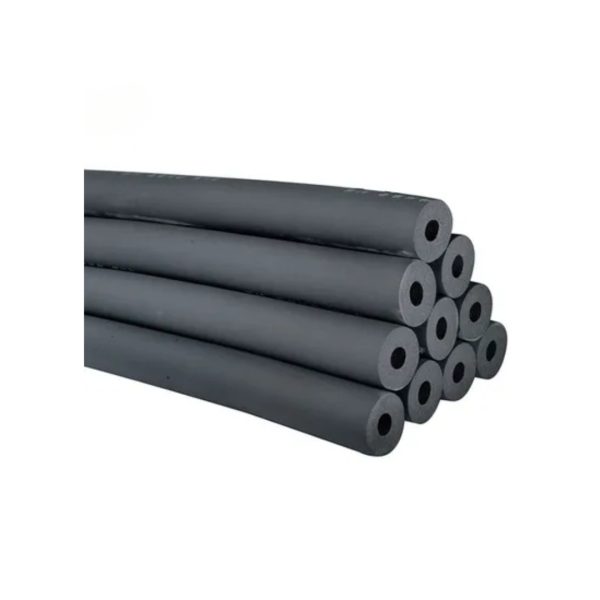

NBR Rubber Pipe Insulation for Copper Coil and Pipe – Product Description

NBR (Nitrile Butadiene Rubber) Pipe Insulation is a flexible, closed-cell insulation material designed to wrap around copper coils and pipes, providing excellent thermal insulation and moisture resistance. It is commonly used in HVAC, refrigeration, and plumbing systems to reduce energy loss, prevent condensation, and protect piping from extreme temperatures.

Applications

• Insulating copper coils and refrigerant lines in split AC units

• Chilled water and hot water piping systems

• Refrigeration and freezer line insulation

• Condensate drain lines

• Solar and heat pump piping

• Industrial fluid transport lines

Features

• Thermal insulation – Reduces heat loss or gain, improving energy efficiency

• Closed-cell structure – Prevents moisture absorption and condensation

• UV and weather resistant – Suitable for indoor and outdoor installations

• Flexible and easy to install – Can be cut, bent, or fitted around complex piping

• Oil and chemical resistant – Ideal for HVAC and industrial environments

• Fire retardant – Meets safety standards (varies by product grade)

• Non-corrosive – Safe for direct use on copper piping

Specifications

• Material: NBR (Nitrile Butadiene Rubber)

• Inner Diameter: 1/4” to 2” (custom sizes available)

• Wall Thickness: 6mm, 9mm, 13mm, 19mm (others on request)

• Thermal Conductivity: ≤ 0.035 W/m·K @ 0°C

• Temperature Range: -40°C to +105°C

• Density: 40–70 kg/m³

• Water Vapor Permeability: ≤ 0.1 μg/(m·s·Pa)

• Color: Typically black

• Length per Piece: 1 meter or 2 meters standard
