Description
Overview

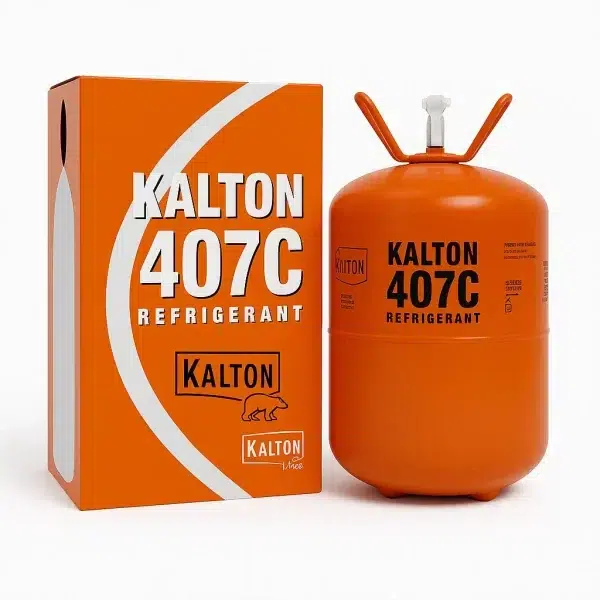

KALTON Refrigerant Gas R-407C is a high-efficiency HFC refrigerant blend designed as a reliable and eco-friendly replacement for HCFC R-22. With a composition of R-32, R-125, and R-134a, R-407C delivers pressure-temperature characteristics similar to R-22, making it the preferred choice for retrofit and upgrade projects. It offers Zero Ozone Depletion Potential (ODP = 0), stable cooling performance, and low toxicity, making it suitable for residential, commercial, and industrial HVAC environments.
Its strong thermodynamic behavior and energy-efficient operation ensure long-term reliability for split ACs, heat pumps, rooftop units, and medium-temperature refrigeration systems.
Key Features
- Zero ODP: Environmentally safer alternative to R-22.
- R-22 Performance Match: Similar pressure-temperature characteristics facilitate retrofitting.
- Strong Cooling Efficiency: Stable system performance across varied conditions.
- Economical Retrofit: Ideal for converting older R-22 systems.
- A1 Safety Class: Non-flammable, low-toxicity refrigerant.
- High Purity: ≥ 99.9% moisture-free formula.
Applications
- Residential split & window AC retrofits
- Commercial ducted units & rooftop HVAC systems
- Heat pumps
- Medium-temperature refrigeration systems
- R-22 replacement in compatible HVAC equipment
Technical Specifications
| Brand | KALTON |
|---|---|
| Refrigerant Type | HFC Blend (R-32 / R-125 / R-134a) |
| Blend Ratio | 23% / 25% / 52% |
| ODP | 0 |
| GWP | ~1,770 |
| Boiling Point | −43.8 °C |
| Temperature Glide | ~7–8 °C |
| Purity | ≥ 99.9% |
| Safety Class | A1 (Non-flammable) |
| Oil Compatibility | POE (Polyolester) oil |
| Packaging | 10 kg, 24 kg cylinders |
Cylinder Dimensions & Handling
- Height (10–24 kg cylinders): approx. 46–50 cm
- Diameter: approx. 23–27 cm
- High-strength steel with corrosion protection
- Store upright between 0–45 °C in ventilated areas
- Avoid direct heat or ignition sources
Usage Guidelines
- Use only in R-407C systems or R-22 retrofits.
- Mandatory POE oil conversion (mineral/AB oil not compatible).
- Charge as liquid to maintain blend consistency.
- Replace filter-drier, evacuate system, and perform leak tests.
- Account for temperature glide in evaporator design & superheat settings.
Safety & Storage
- A1 non-flammable refrigerant
- Use PPE: gloves and goggles
- Ensure mechanical ventilation when charging
- Store cylinders upright in cool, dry areas
FAQs
1. Is R-407C a direct drop-in replacement for R-22?
No. It requires proper retrofit steps including oil change, line flushing, and liquid charging.
2. What is temperature glide?
A phase-change temperature difference (~7–8°C) that affects evaporator design and superheat settings.
3. Can R-407C be used instead of R-410A?
No. R-407C operates at different pressures and is better suited for R-22 retrofits.
4. What oil is compatible with R-407C?
POE (Polyolester) oil only.
5. Is R-407C safe?
Yes—classified A1, non-flammable and low toxicity.
