Description

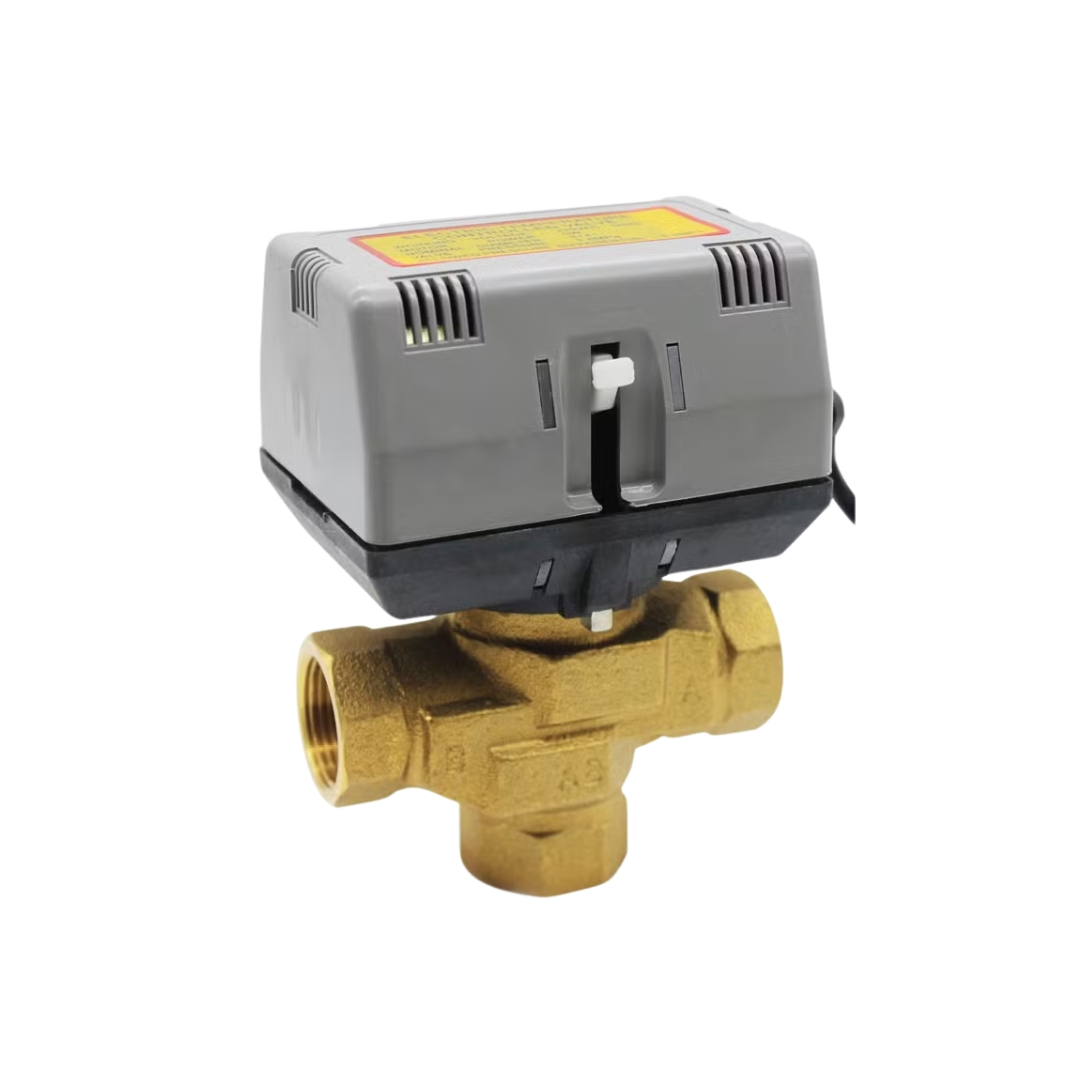

Honeywell VC6013MJ6000T – 3-Way Electric Valve Actuator (220V AC)
The Honeywell VC6013MJ6000T is a compact, high-performance 3-way electric valve actuator designed for precise control of hot or cold water flow in HVAC systems. Operating at 220V AC, it is ideal for domestic and small commercial heating and cooling applications, offering reliable performance in both diverting and mixing configurations.
Applications
-
Fan coil units (FCUs)
-
Terminal reheat coils
-
Radiators and convectors
-
Domestic central heating and cooling systems
Features
-
2-position control: Suitable for on/off zone control
-
Quick operation: 6-second run time
-
Manual override: Allows manual operation during power outages
-
Durable construction: Brass valve body with IP50-rated actuator
-
Flexible installation: BSPP threaded connections for easy integration
Specifications
| Attribute | Details |
|---|---|
| Model | VC6013MJ6000T |
| Voltage | 220V AC, 50Hz |
| Operation | 2-position (on/off) |
| Run Time | 6 seconds |
| Valve Type | 3-way (diverting or mixing) |
| Connection Size | ¾ inch BSPP |
| Nominal Diameter | DN20 |
| Pressure Rating | PN16 |
| Flow Capacity (Cv) | 7.0 |
| Ingress Protection | IP50 |
| Operating Temp. | -30°C to +80°C |
| Humidity Range | 5–95% RH (non-condensing) |
| Cable Length | 1 meter |
| Material | Brass valve body |
| Mounting | BSPP threaded connections |
Questions
-
Is this actuator intended for a diverting or mixing application in your HVAC system?
-
What is the flow rate requirement for your specific application to ensure compatibility with the 7.0 Cv rating?
