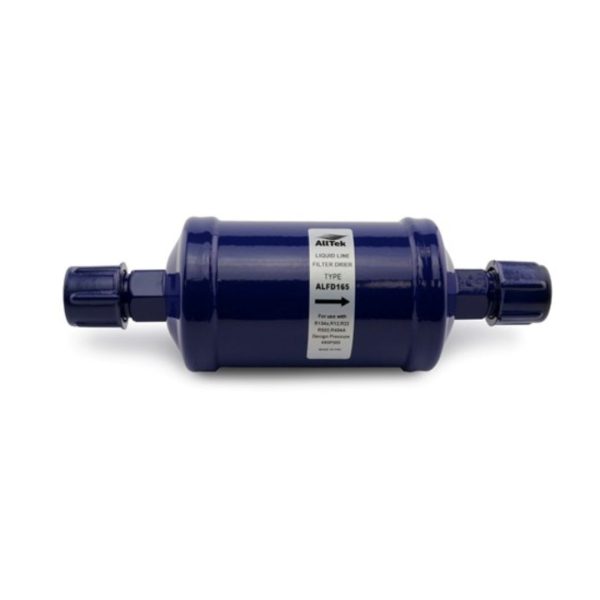

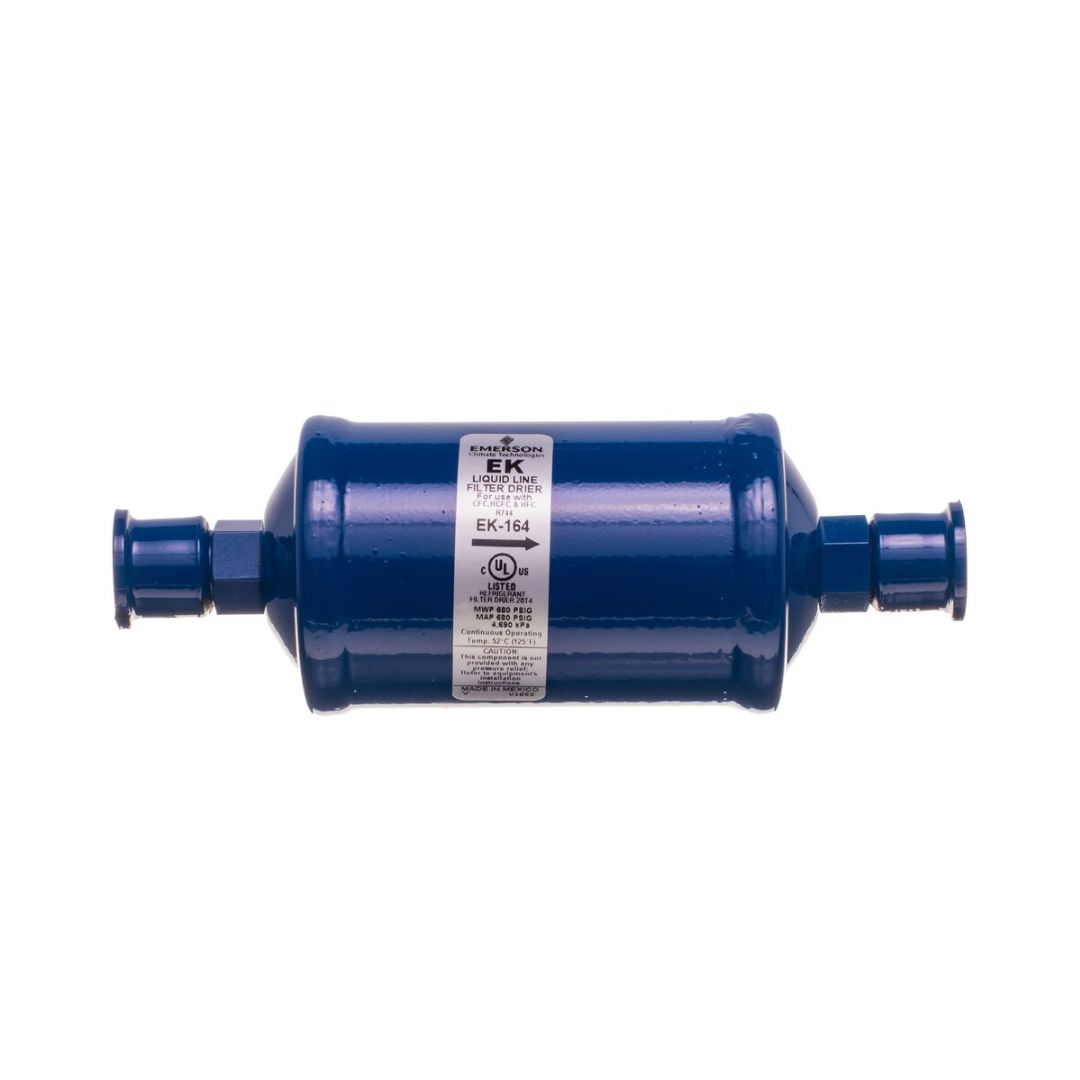

Filter Drier (Flaring Type) – Description
A Filter Drier (Flaring Type) is a key component in refrigeration and air conditioning systems, designed to remove moisture, acid, and particulate matter from refrigerants. The flared connection design allows for quick and flame-free installation, making it ideal for field servicing and system maintenance. It ensures optimal system performance and protects critical components from damage caused by contaminants.
Applications
-
Split Air Conditioning Systems
-
Commercial Refrigeration Units
-
Cold Storage Rooms
-
Heat Pump Systems
-
Refrigerated Transport Units
Key Features
-
Easy installation with flare-type connectors
-
High moisture and acid absorption capacity
-
Durable, corrosion-resistant steel shell
-
Suitable for multiple refrigerants including R-22, R-410A, R-134a
-
Compact and space-saving design
Technical Specifications
| Specification | Detail |
|---|---|
| Connection Type | Flare (1/4″, 3/8″, 1/2″) |
| Maximum Working Pressure | Up to 500 psi (depending on model) |
| Maximum Temperature | 120°C (248°F) |
| Desiccant Type | Solid core (molecular sieve + activated alumina) |
| Filter Rating | 20 microns |
| Compatible Refrigerants | R-22, R-134a, R-404A, R-407C, R-410A |
| Shell Material | Copper-plated or epoxy-coated steel |
Frequently Asked Questions
-
How do I know when a filter drier needs to be replaced?
-
Are flaring filter driers reusable after system maintenance?
