Description

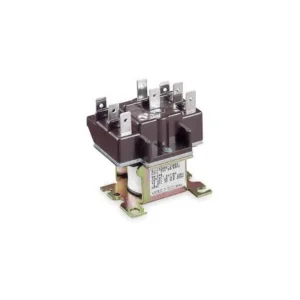

A coil relay is an electromechanical switching device that uses an electromagnetic coil to open or close contacts in a circuit. When voltage is applied to the coil, the generated electromagnetic field moves a set of internal contacts, allowing the relay to control the flow of current between different components. Coil relays are widely used for controlling high-power circuits with low-power signals, making them ideal for applications in automotive systems, industrial machinery, home appliances, and telecommunications.

Features of Coil Relay

1. Electromagnetic Coil: The core component responsible for generating the magnetic field to operate the relay.
2. High Power Handling: Capable of controlling circuits with high current and voltage levels.
3. Electrical Isolation: Provides electrical separation between the control circuit and the output circuit, ensuring safer operations.
4. Varied Contact Configurations: Available in multiple contact arrangements such as SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), and DPDT (Double Pole Double Throw), offering flexibility for different applications.
5. Compact Design: Small size allows for easy integration into compact systems, making it suitable for various applications.
6. Durability: Designed for long life with mechanical and electrical endurance, often rated for thousands or even millions of switching cycles.
7. Fast Switching: Rapid response time, making it suitable for applications requiring quick switching operations.
8. Low Power Consumption: Efficient coil designs reduce power usage, allowing for energy savings in low-power applications.
