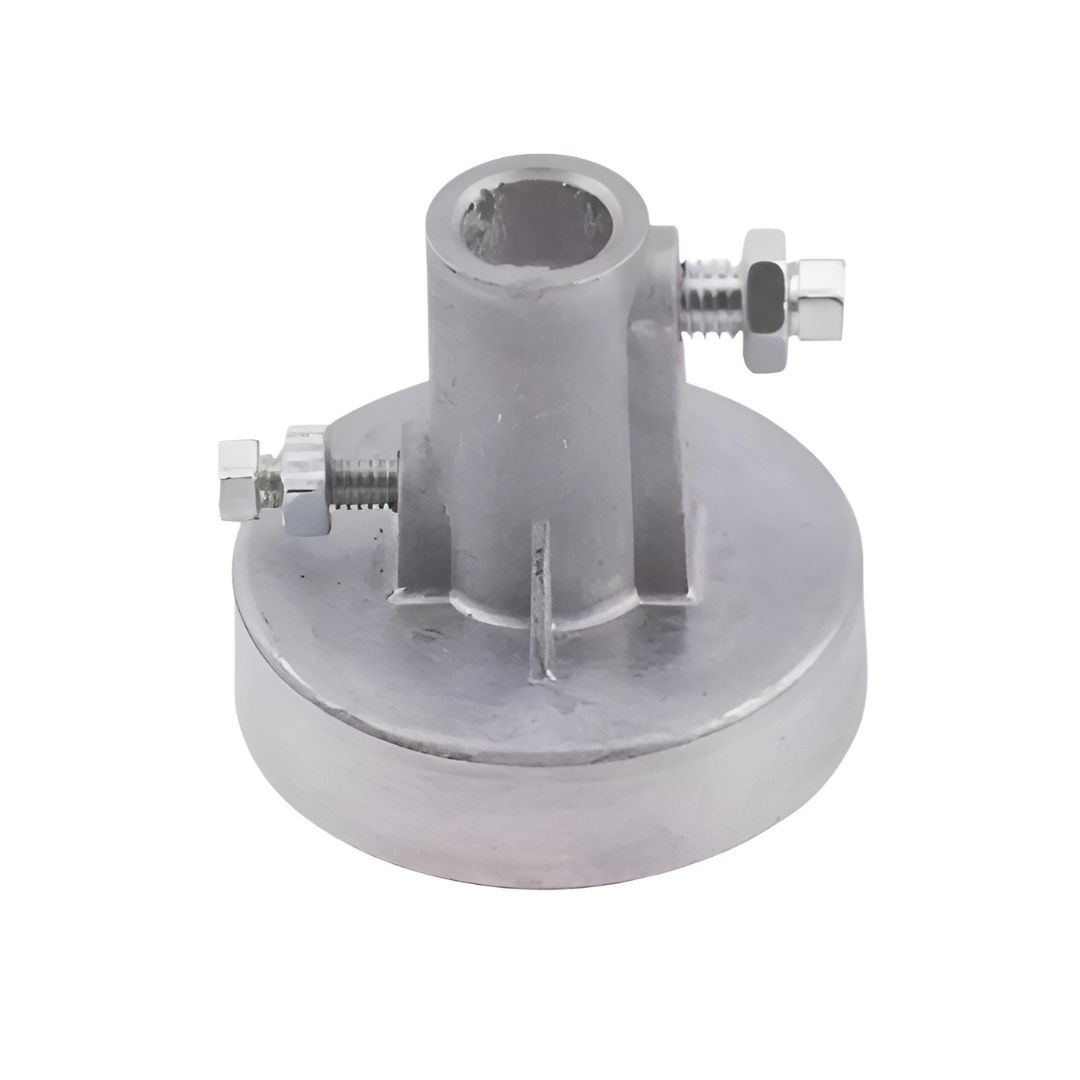

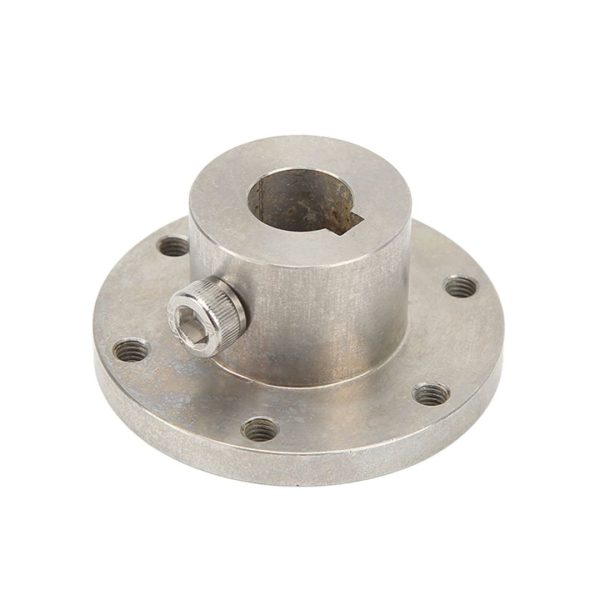

Coupling for Spin Motor Pulley – Detailed Description
A coupling for spin motor pulley is a mechanical device used to connect the motor shaft to the pulley in spinning machines, ensuring smooth transmission of rotational power. It plays a crucial role in maintaining alignment and reducing vibration between the motor and the pulley, thereby protecting the system from wear and mechanical failure.
Designed to accommodate slight misalignments and absorb shocks, these couplings enhance the durability and performance of spin motors in various industrial machinery. The coupling also facilitates easy assembly and disassembly during maintenance.
Applications
-
Textile spinning machinery
-
Industrial motor and pulley systems
-
Conveyor belt drives
-
HVAC blower fan motors
-
General mechanical power transmission setups
Key Features
-
High-quality, durable materials for long-lasting performance
-
Designed to handle torque transmission efficiently
-
Absorbs vibrations and compensates for minor shaft misalignments
-
Easy installation and removal for maintenance
-
Compatible with various motor and pulley sizes
-
Helps prevent premature wear and mechanical damage
Specifications
| Specification | Detail |
|---|---|
| Material | Steel / Cast Iron / Alloy Steel |
| Bore Diameter | Customizable (e.g., 12mm to 50mm) |
| Outside Diameter | Varies by model |
| Length | Typically ranges 50mm to 150mm |
| Torque Capacity | Depends on size, typically 10-100 Nm |
| Suitable Shaft Types | Keyed or smooth shafts |
| Operating Temperature Range | -20°C to 80°C |
| Surface Finish | Machined, sometimes coated for corrosion resistance |
| Mounting Method | Set screws or clamp type |
Frequently Asked Questions
-
What types of misalignment can the coupling accommodate?
-
How do I select the correct coupling size for my spin motor pulley?
