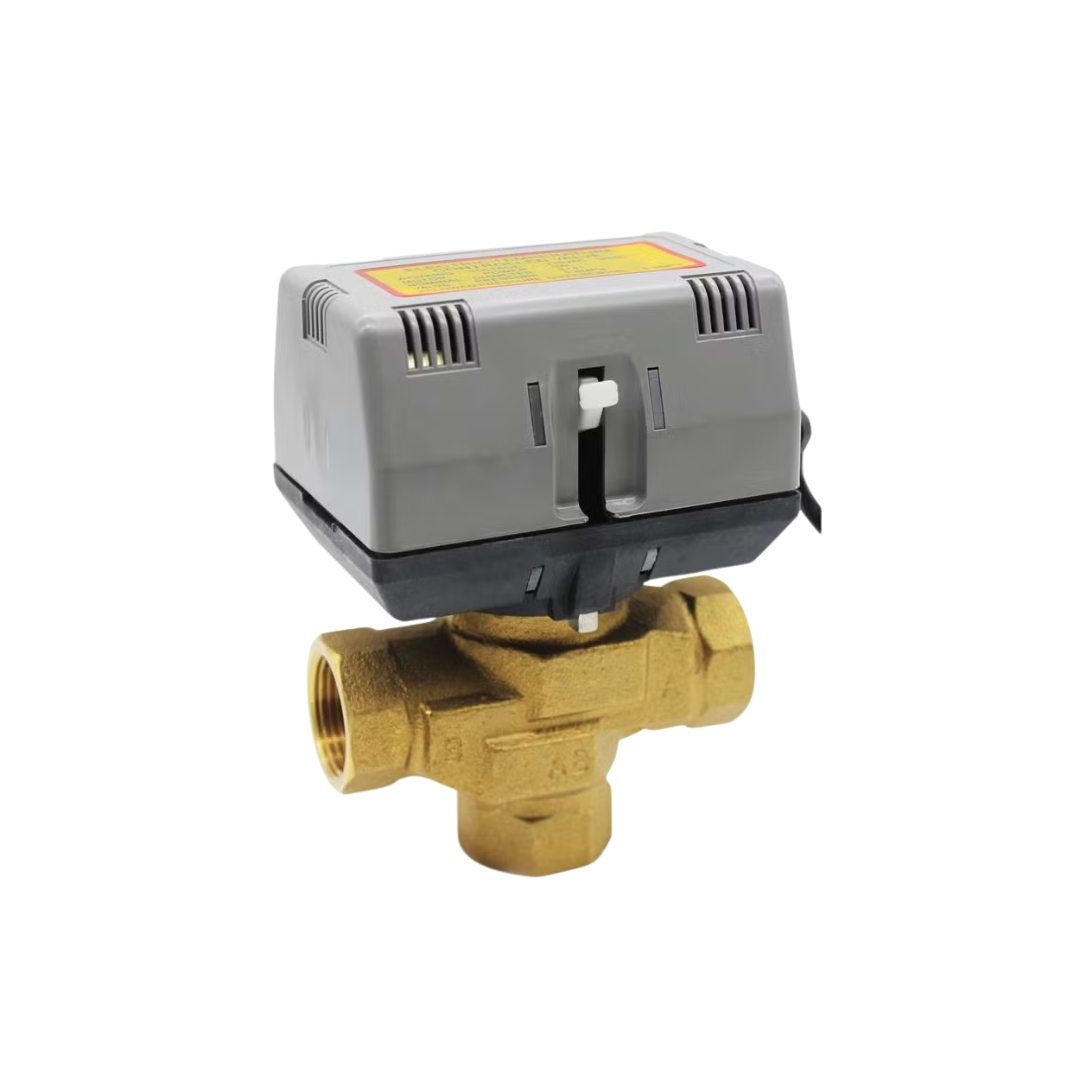

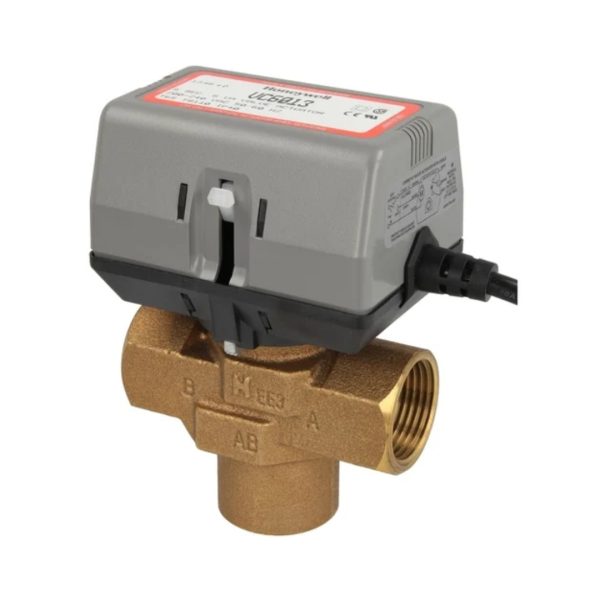

Honeywell 3-Way Electric Valve Actuator (24V) – Product Overview
Honeywell offers a range of 3-way electric valve actuators operating at 24V AC, designed for precise control of hot or chilled water flow in HVAC systems. These actuators are suitable for various applications, including fan coil units, terminal reheat coils, and convectors. Depending on the specific model, they can provide on/off or modulating control, ensuring efficient and reliable operation in both residential and commercial settings.
Applications
-
Fan coil units (FCUs)
-
Terminal reheat coils
-
Convectors
-
Domestic central heating and cooling systems
Features
-
Available in both on/off and modulating control options
-
Quick operation with nominal timing as low as 6 seconds
-
Manual override for operation during power failures
-
Compact construction for easy installation
-
Durable materials, including stainless steel and aluminum components
-
Compatible with various Honeywell valve bodies.
Specifications
| Attribute | Details |
|---|---|
| Voltage | 24V AC |
| Control Type | On/Off or Modulating (depending on model) |
| Operation Time | As low as 6 seconds (varies by model) |
| Connection Size | Typically ¾ inch NPT or BSPP (varies by model) |
| Ambient Temperature | 34°F to 125°F (1°C to 52°C) |
| Fluid Temperature | Up to 200°F (93°C) |
| Power Consumption | Approximately 6 Watts (varies by model) |
| Materials | Stainless steel case, aluminum cover |
| Manual Override | Yes |
| Fail-Safe Mode | Spring return or electronic fail-safe options |
Questions
-
Are you looking for an on/off or modulating control actuator for your application?
-
What is the specific valve body or system configuration you intend to use with this actuator?
