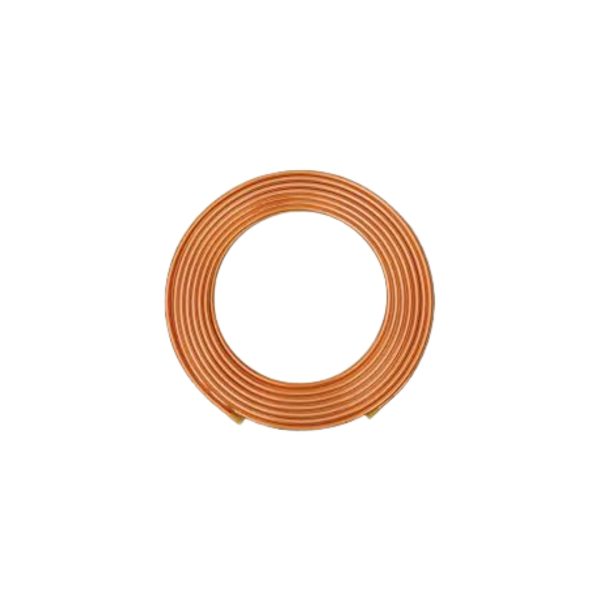

Maksal copper pipe/ lengths

Description

Maksal Copper Pipes are high-quality, seamless copper tubes renowned for their durability, corrosion resistance, and excellent thermal conductivity. Available in various sizes and lengths, they are ideal for plumbing, HVAC, gas distribution, industrial use, and solar systems.

Available Sizes & Lengths

• Outer Diameter (OD): 6mm to 108mm

• Standard Lengths: 3 meters and 5.5 meters (straight lengths)

• Classes:

  • Class 1 (Light): Wall thickness ranging from 0.70mm to 2.30mm, suitable for above-ground installations.

  • Class 2 (Medium): Wall thickness ranging from 1.00mm to 2.50mm, recommended for underground applications.

Specifications

• Material: High-purity copper (C12200) with a minimum purity of 99.9%

• Standards Compliance: Manufactured according to SANS 460/85 as amended 1986

• Pressure Ratings:

  • Class 1: Maximum working pressure up to 5.13 MPa

  • Class 2: Maximum working pressure up to 7.33 MPa

• Identification:

  • Class 1: Orange end caps with markings every half meter

  • Class 2: Brown end caps with markings every half meter

Features

• High Durability: Designed to withstand high pressure and temperature variations.

• Corrosion Resistance: Offers excellent resistance to corrosion, ensuring longevity.

• Thermal Conductivity: Superior thermal performance makes them ideal for heat exchange applications.

• Versatility: Suitable for both above-ground and underground installations.

• Ease of Installation: Compatible with capillary soldered and compression fittings.

Applications

• Plumbing Systems: Hot and cold water distribution in residential and commercial buildings.

• HVAC Systems: Refrigerant lines and heat exchangers in air conditioning systems.

• Gas Distribution: Safe and reliable for natural gas and LPG installations.

• Industrial Use: Suitable for various industrial processes requiring durable piping solutions.

• Solar Systems: Efficient in solar thermal applications due to high thermal conductivity.

Questions to Consider

1. What is the specific application for which you require Maksal Copper Pipes? (e.g., plumbing, HVAC, gas distribution)

2. Do you need assistance in selecting the appropriate class and size for your project requirements?
