Flaring Tool – Detailed Description
A Flaring Tool is a specialized hand tool used to form flared ends on soft metal tubing—primarily copper, aluminum, brass, or mild steel—for secure and leak-proof connections. Commonly used in HVAC, refrigeration, plumbing, and automotive systems, the tool creates either a 45° or 37° flare at the end of a pipe, allowing it to connect seamlessly with flared fittings.

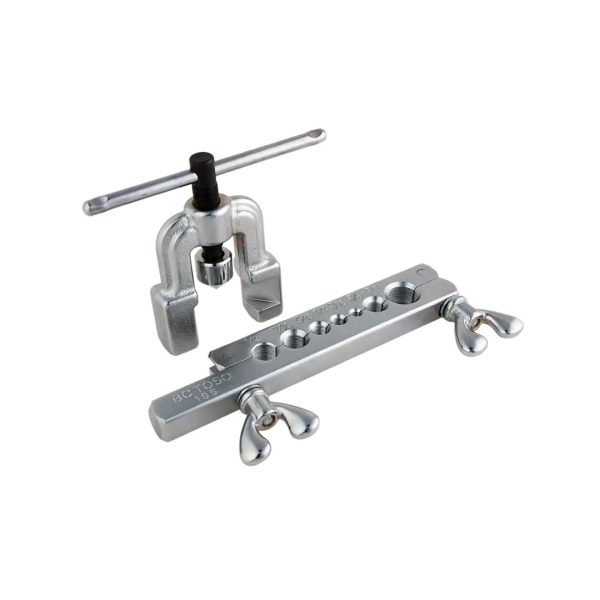

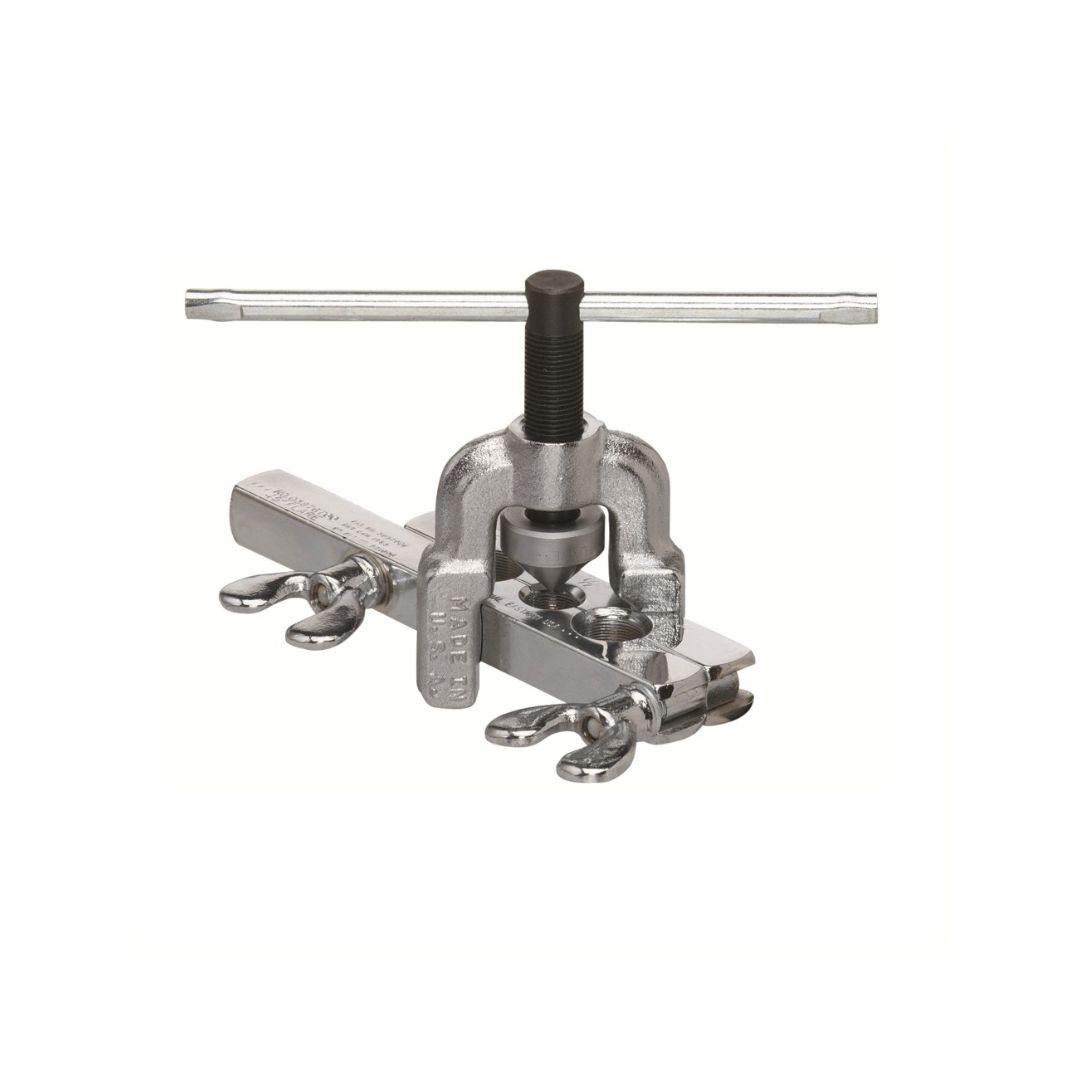

The tool typically consists of a clamp or bar to hold the tube and a cone-shaped press or yoke that expands the tubing into a precise flare. This process ensures a tight mechanical seal that is durable and resistant to vibration, pressure, and temperature changes. Double flaring tools are also available for added strength in high-pressure applications.
Flaring Tools are essential for preparing tubing in systems that carry gas, refrigerant, oil, or fluid—ensuring professional-quality installations and repairs.
Applications
-
HVAC and refrigeration copper pipe connections
-
Automotive brake and fuel line flaring
-
Gas and water plumbing systems
-
Industrial hydraulic and pneumatic tubing
-
Oil and fluid transmission lines
-
Marine and aerospace tubing installations
Features
-
✔️ Compatible with copper, brass, aluminum, and soft steel
-
✔️ Creates 45° or 37° single or double flares
-
✔️ Strong, leak-proof mechanical connections
-
✔️ Hardened steel construction for durability
-
✔️ Compact, portable, and easy to operate
-
✔️ Precise flaring with minimal tube damage
-
✔️ Available in manual, hydraulic, and ratchet types
Specifications Table
| Property | Details |
|---|---|
| Tool Type | Manual / Hydraulic Flaring Tool |
| Flaring Angle | 45° (Standard), 37° (AN/JIC) |
| Supported Tube Sizes | 1/8″ to 3/4″ (varies by model) |
| Material Compatibility | Copper, Aluminum, Brass, Mild Steel |
| Flare Type | Single or Double Flare |
| Construction Material | High Carbon Steel / Alloy Steel |
| Grip Handle | Anti-slip ergonomic design |
| Applications | HVAC, Plumbing, Automotive, Industrial |
Frequently Asked Questions
1. What’s the difference between a single and double flare?
A single flare expands the tubing once into a cone shape, while a double flare folds the edge before flaring for added strength—ideal for high-pressure systems like brake lines.
2. Can I use a flaring tool on stainless steel pipes?
Most standard flaring tools are not suitable for stainless steel. For that, you need a heavy-duty or hydraulic flaring tool designed for harder metals.
