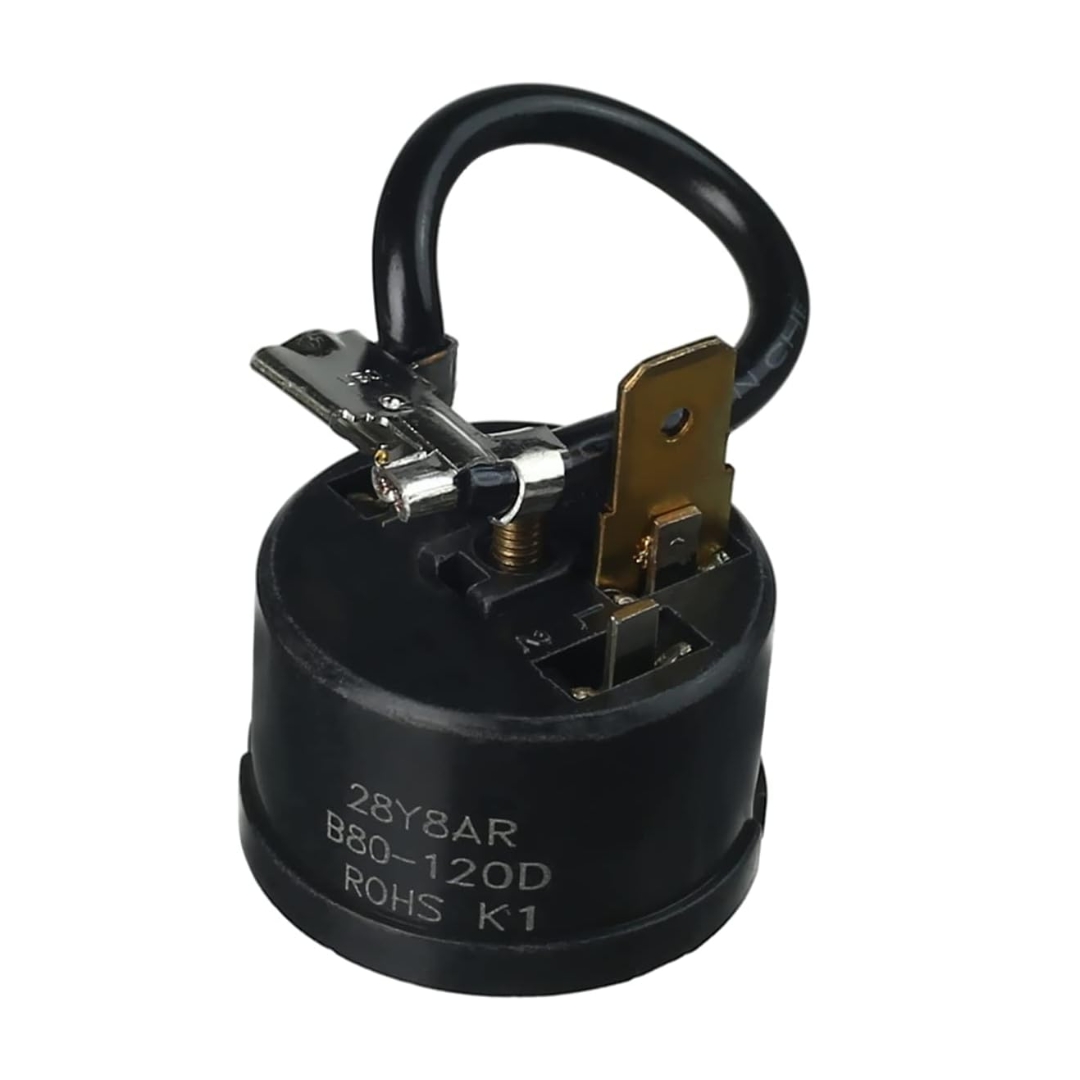

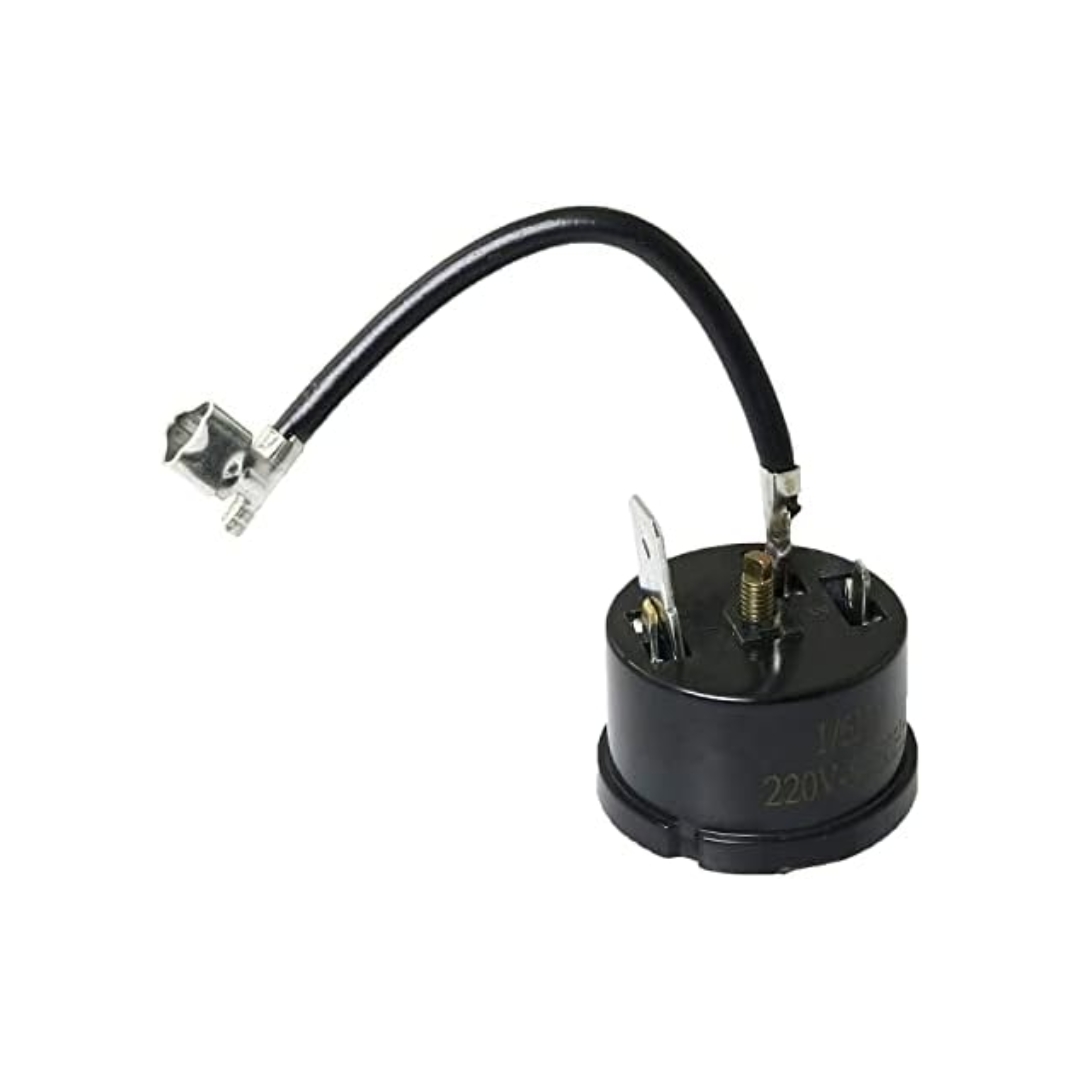

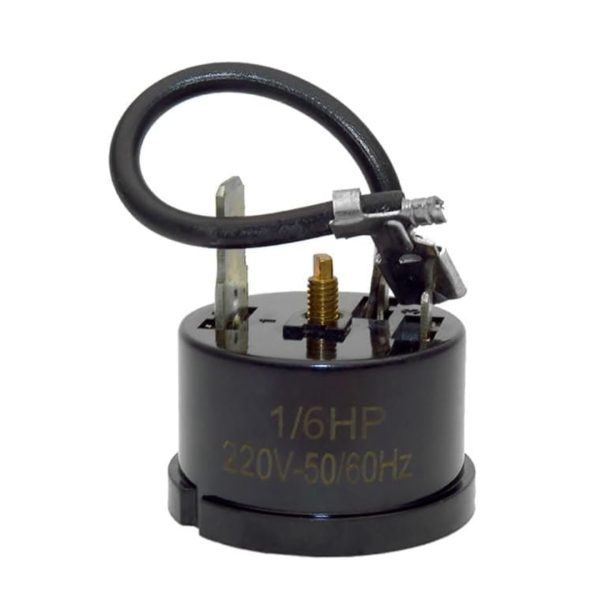

Compressor Protector Refrigerator Thermal Overload Protector

Compressor Protector Refrigerator Thermal Overload Protector

The Compressor Protector Refrigerator Thermal Overload Protector is a crucial safety component for refrigeration systems, designed to protect the compressor from damage caused by overheating or electrical overload. Its primary function is to disconnect the compressor’s electrical circuit when unsafe conditions are detected, ensuring the appliance operates efficiently and safely.

Applications:

1. Residential Refrigerators:

   • Protects household refrigerator compressors from overheating, ensuring consistent performance and preventing costly repairs.

2. Commercial Refrigeration Systems:

   • Used in commercial refrigerators, freezers, and beverage dispensers to safeguard compressors in high-demand environments, ensuring the equipment runs efficiently throughout extended periods.

3. Air Conditioning Systems:

   • Can be integrated into air conditioning compressors to prevent thermal damage due to high temperatures, ensuring longevity in both home and office AC units.

4. Industrial Cooling Units:

   • Protects compressors in industrial refrigeration units, such as cold storage, food processing facilities, and warehouses, where maintaining low temperatures is crucial.

5. Vending Machines and Other Cooling Equipment:

   • Ideal for refrigeration in vending machines, ice machines, and other cooling systems where continuous operation without overheating is necessary.

Key Features:

• Thermal Protection:

  • The protector monitors the temperature of the compressor and disconnects the power if it reaches unsafe levels, preventing overheating and potential damage to the compressor.

• Overload Protection:

  • Senses excessive electrical current draw by the compressor and disconnects the power supply to prevent the compressor motor from burning out.

• Automatic Reset:

  • Once the compressor cools down or the overload condition is resolved, the protector automatically resets, allowing the compressor to restart without needing manual intervention.

• Prevents System Failure:

  • By disconnecting the power in critical situations, it helps prevent compressor failure and protects the overall refrigeration system from major damage.

• Improved Efficiency:

  • Helps maintain compressor efficiency by preventing thermal damage or electrical stress, leading to better performance and energy savings.

• Durable and Reliable:

  • Built for long-lasting protection, reducing the risk of unexpected breakdowns and extending the lifespan of the refrigeration system.

Specifications:

• Operating Voltage:

  • Typically designed for use with standard refrigeration systems operating at 220V or 110V, depending on the model.

• Current Rating:

  • Available in different current ratings to match various compressor sizes (e.g., 1/4 HP, 1/3 HP, 1/2 HP, etc.).

• Temperature Rating:

  • The protector activates at a specific temperature threshold, typically between 120°F to 140°F (49°C to 60°C), depending on the model.

• Connector Type:

  • Standard connectors like 2-pin or 3-pin terminals for easy integration into the existing compressor wiring.

• Size and Dimensions:

  • The size of the protector varies, but it is typically compact enough to fit in most refrigeration units, often measuring 3-4 inches in length and 1-2 inches in width.

• Material:

  • Constructed with high-quality, heat-resistant materials to withstand the high operating temperatures of compressors.

• Reset Function:

  • Many models come with an automatic reset feature, ensuring the compressor can restart once it returns to safe operating conditions.

Conclusion:

The Compressor Protector Refrigerator Thermal Overload Protector is a vital safeguard for any refrigeration system, ensuring the compressor remains protected from overheating and electrical overloads. By automatically disconnecting the power when unsafe conditions arise and resetting once conditions are safe again, it helps extend the life of the compressor, improve operational efficiency, and prevent costly repairs. Whether in residential, commercial, or industrial applications, this protector is an essential component for ensuring reliable, long-term performance of refrigeration systems.
